Guitar Neck Plate Marking Jig - Standard 4 Bolt

A Collaboration by FAV Guitars x Jayrus Labs

FAV Guitars and Jayrus Labs have joined forces to create high-performance parts and tools designed for guitar players and luthiers alike. Whether you are a professional builder or a player upgrading your favorite instrument, our products provides the perfect blend of custom aesthetics and shop-grade reliability.

Precision Alignment Features

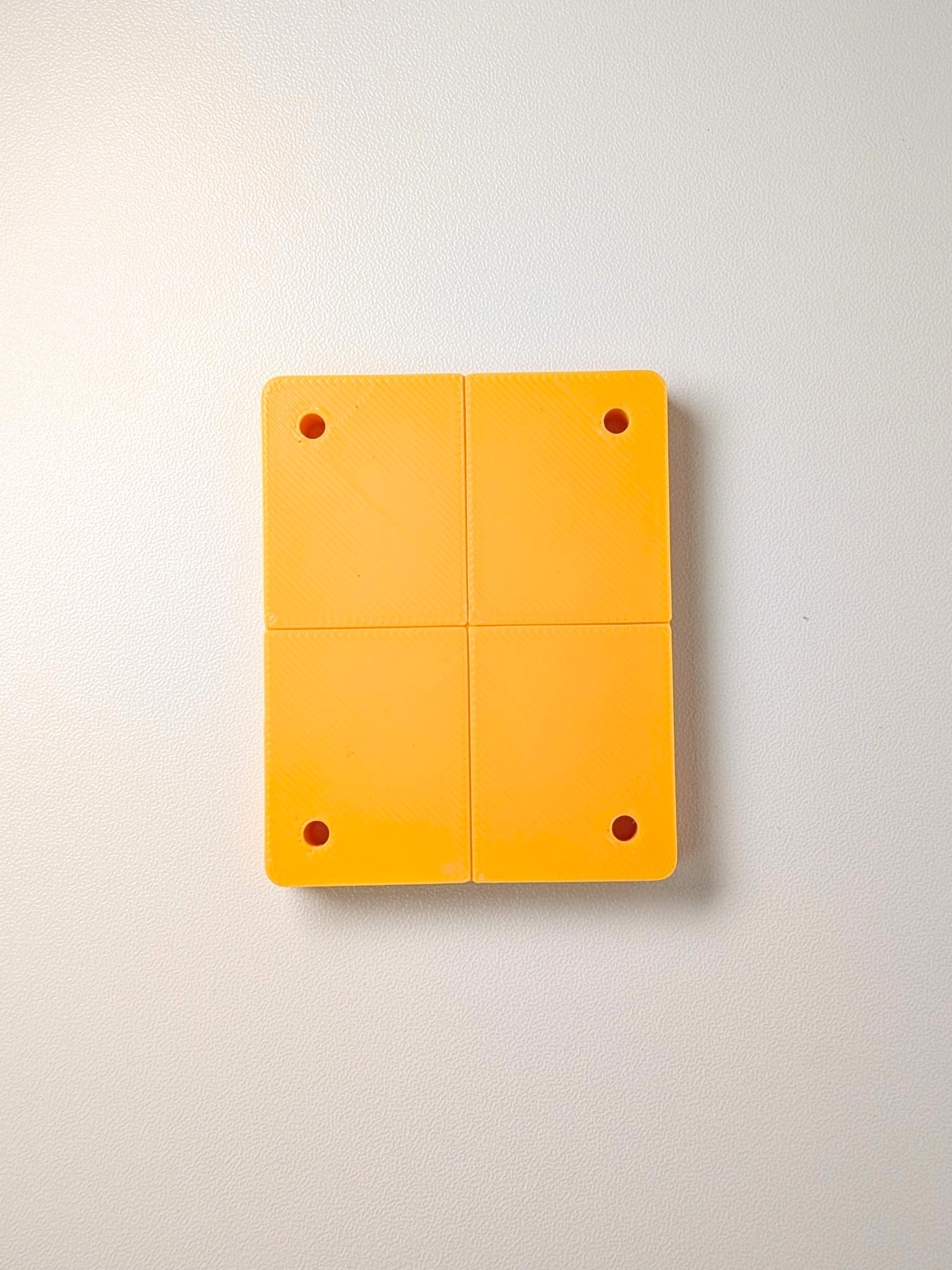

• Dual-Axis Center Lines: Featuring both vertical and horizontal center lines, this jig allows for perfect placement on your guitar body or body blank. The center lines continue down the sides of the jig, making it easy to line them up perfectly with the marks on your guitar body.

• High-Accuracy Fit: Engineered with tight tolerances to ensure your mounting holes are perfectly centered every time, eliminating the guesswork of manual measuring.

The Precision Installation System This jig is a core component of a specialized system designed to take the guesswork out of the workshop. To achieve a factory-perfect installation, we recommend the following workflow:

• Secure Placement: Use a small piece of double-sided tape to hold the jig firmly in place once aligned.

• Accurate Marking: Use an 1/8” center punch or brad point drill bit to mark the exact locations for your mounting screws.

Important Notes for Success:

• Marking vs. Drilling: This jig is designed to mark locations only. After marking, remove the jig and ensure you use the correct drill bit size for your specific mounting screws.

• Compatibility: This jig is specifically engineered to work with standard square 4-bolt neck plates commonly found on traditional electric guitars and basses.

• Practice First: We highly recommend testing your alignment and drilling on a scrap piece of wood first.

Building a modern guitar? Looking for alignment tools for asymmetrical or offset guitar heels? Check out our Contoured & Curved Neck Plate Marking Jig here.

Explore the Full System Looking for more precision? We offer a variety of Jigs designed to simplify your build process. Explore the full collection for additional professional-grade guitar components.
