FAV Guitars and Jayrus Labs have joined forces to create high-performance parts and tools designed for guitar players and luthiers alike. Whether you are a professional builder or a player upgrading your favorite instrument, the Luthier Series provides the perfect blend of custom aesthetics and shop-grade reliability.
Master the layout. This premium bundle pairs our proprietary Luthier Series pickup rings with their matching Screw Locator Jig - they provide an accurate template system that eliminates layout guesswork and protects your custom build from costly errors.
Bundle Overview

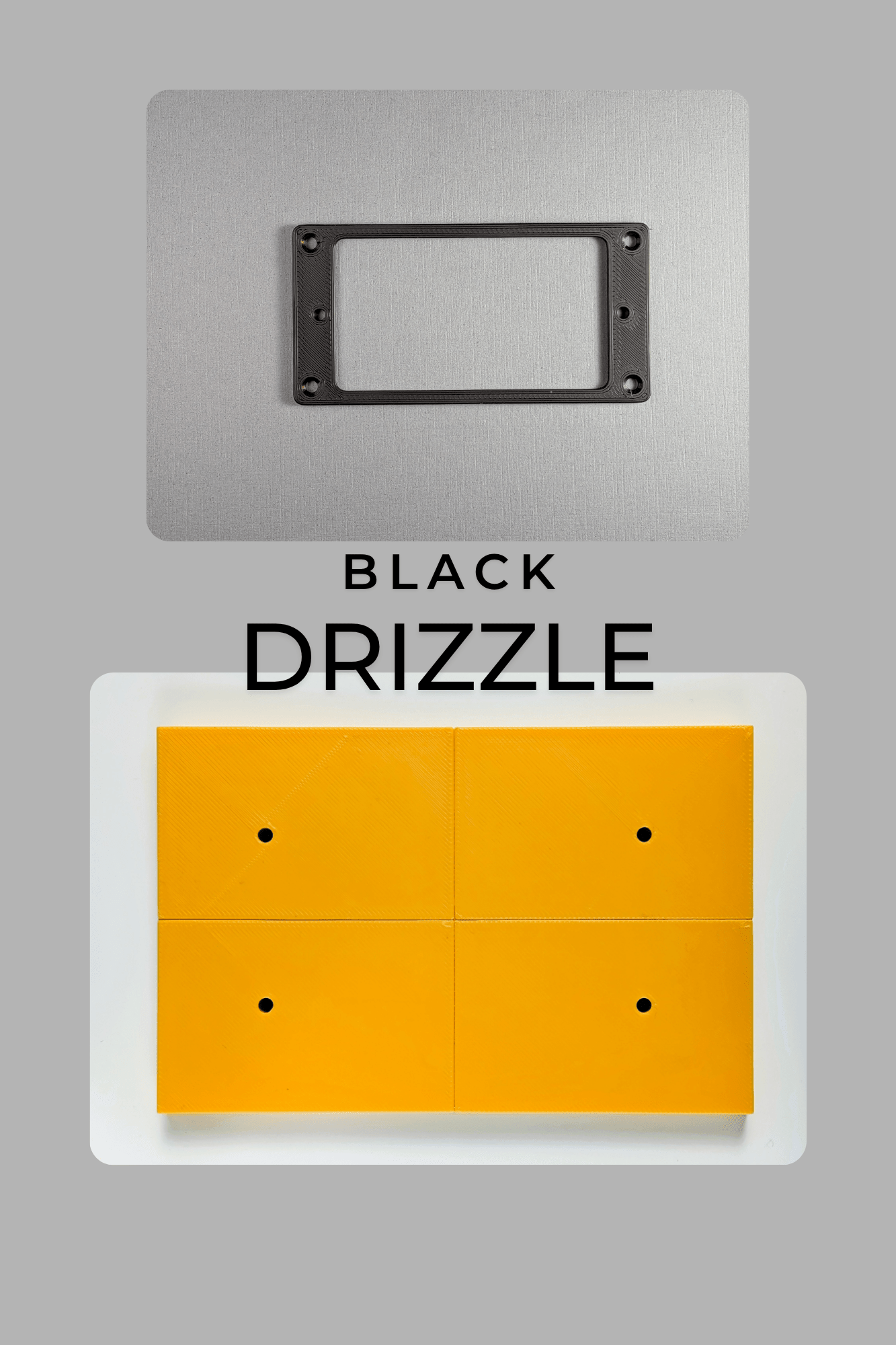

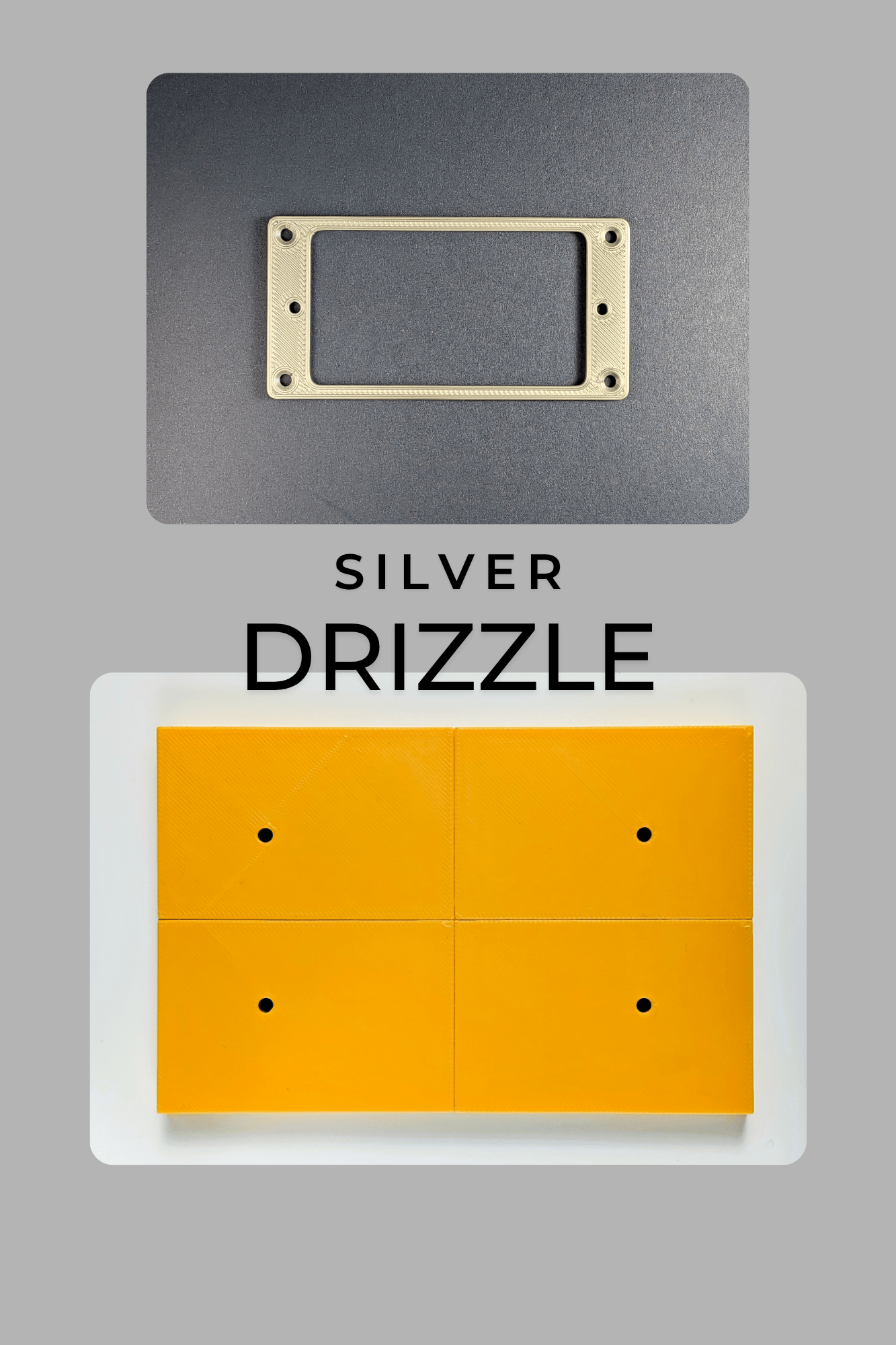

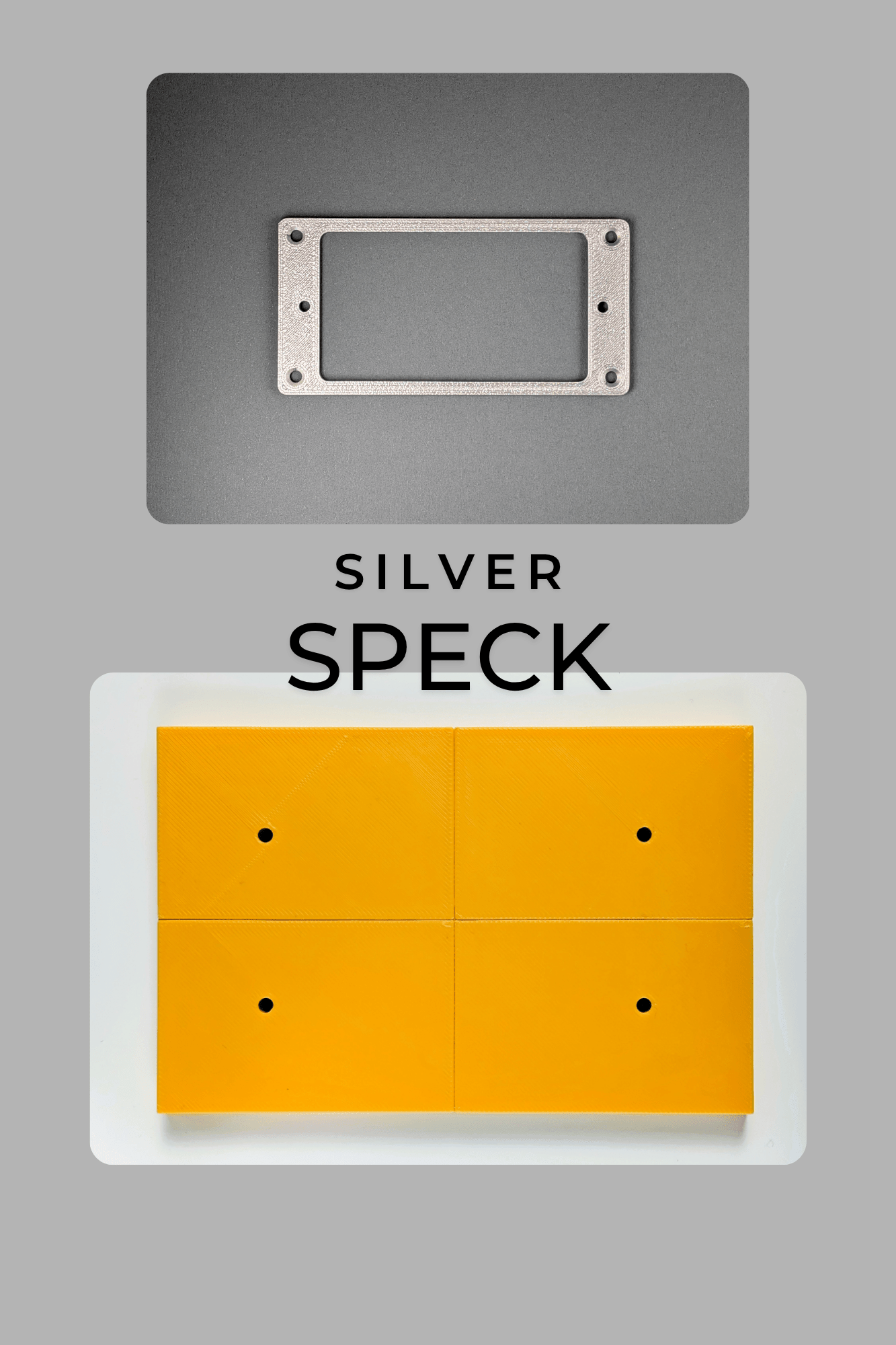

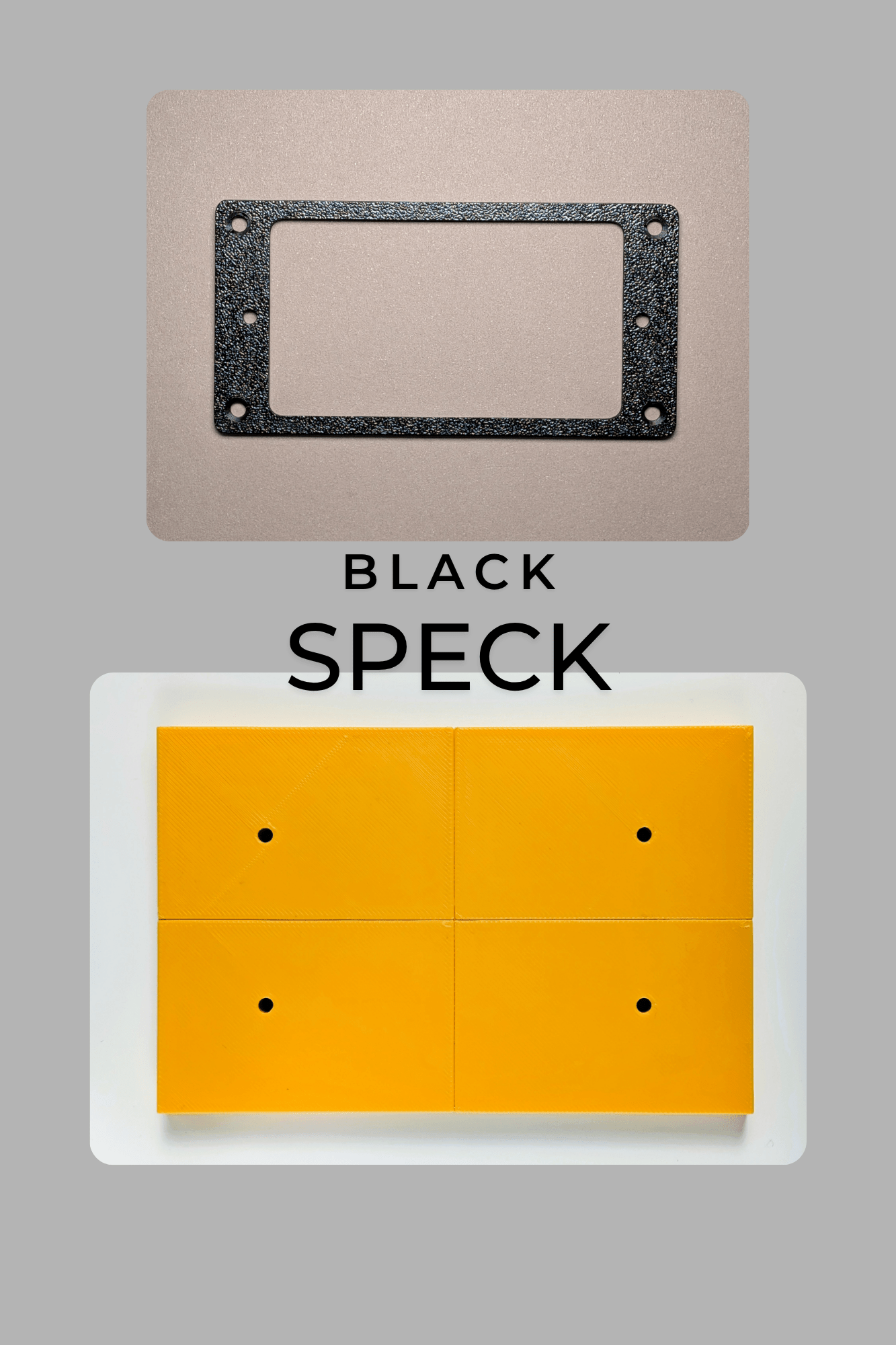

This kit includes:
Luthier Pickup Rings (2-Pack): High-performance ABS rings designed with unique custom finishes, primarily intended for new boutique builds. (For detailed footprint dimensions and engineering specs, view the individual product page).
Luthier Screw Locator Jig: A precision-scaled layout tool engineered with tight tolerances and dual-axis center lines to integrate exclusively with our Luthier Series rings. (For exact technical drawings, view the individual product page).
The Precision Installation System Workflow
This integrated system is a core workshop component designed to deliver shop-grade reliability. To achieve a factory-perfect installation, we recommend the following steps:
Secure Placement: Use a small piece of double-sided tape to hold the jig firmly in place once aligned.
Accurate Marking: Use an 1/8” center punch or brad point drill bit to mark the exact locations for your mounting screws.
Marking vs. Drilling: This jig is designed to mark locations only. After marking, remove the jig and ensure you use the correct drill bit size for your specific mounting screws.
Practice First: We highly recommend testing your alignment and drilling on a scrap piece of wood first.
Technical Specifications & Characteristics
Durable ABS Construction: Built to withstand the rigors of the stage and the workbench, providing long-term structural integrity.
Precision Scaling: The jig is precision-scaled to account for material shrinkage, ensuring accurate template alignment during installation.
Manufacturing Characteristics: Due to our specialized fabrication process, every part features a unique finish. These subtle variations are normal and do not affect the precision fit or mechanical performance.
Available Finishes: Choose from our signature smooth or textured surfaces.
Color Note: Industrial finishes are light-reactive; studio photos may appear lighter than in ambient light.
Mounting Hardware: Mounting screws are not included. This allows you to select a specific screw finish to match your custom build hardware.
Finding the Right Fit & Compatibility
New Builds & Replacements: These proprietary rings are primarily intended for new custom builds. If these dimensions don't match your specific guitar layout, check our other listings or contact us to see if we have a variation that better fits your needs.
Jig Compatibility: These jigs are specifically engineered to work seamlessly with our Luthier Series Pickup Rings and they are also compatible with Philadelphia Luthier Tools humbucker rings.
Explore the Full System
Looking for more precision? We offer a variety of Jigs designed to simplify your build process. Explore the full collection for additional professional-grade guitar components.
🇺🇸Made in USA
Ships from California, USA
Availability:
Released in production cycles; next release opens following fulfillment.
