FAV Guitars and Jayrus Labs have joined forces to create high-performance parts and tools designed for guitar players and luthiers alike. Whether you are a professional builder or a player upgrading your favorite instrument, our products provide the perfect blend of custom aesthetics and shop-grade reliability.
This comprehensive bundle brings our complete installation system together into a single package, eliminating the guesswork of manual measuring and ensuring your mounting holes are perfectly centered every time.
Bundle Overview

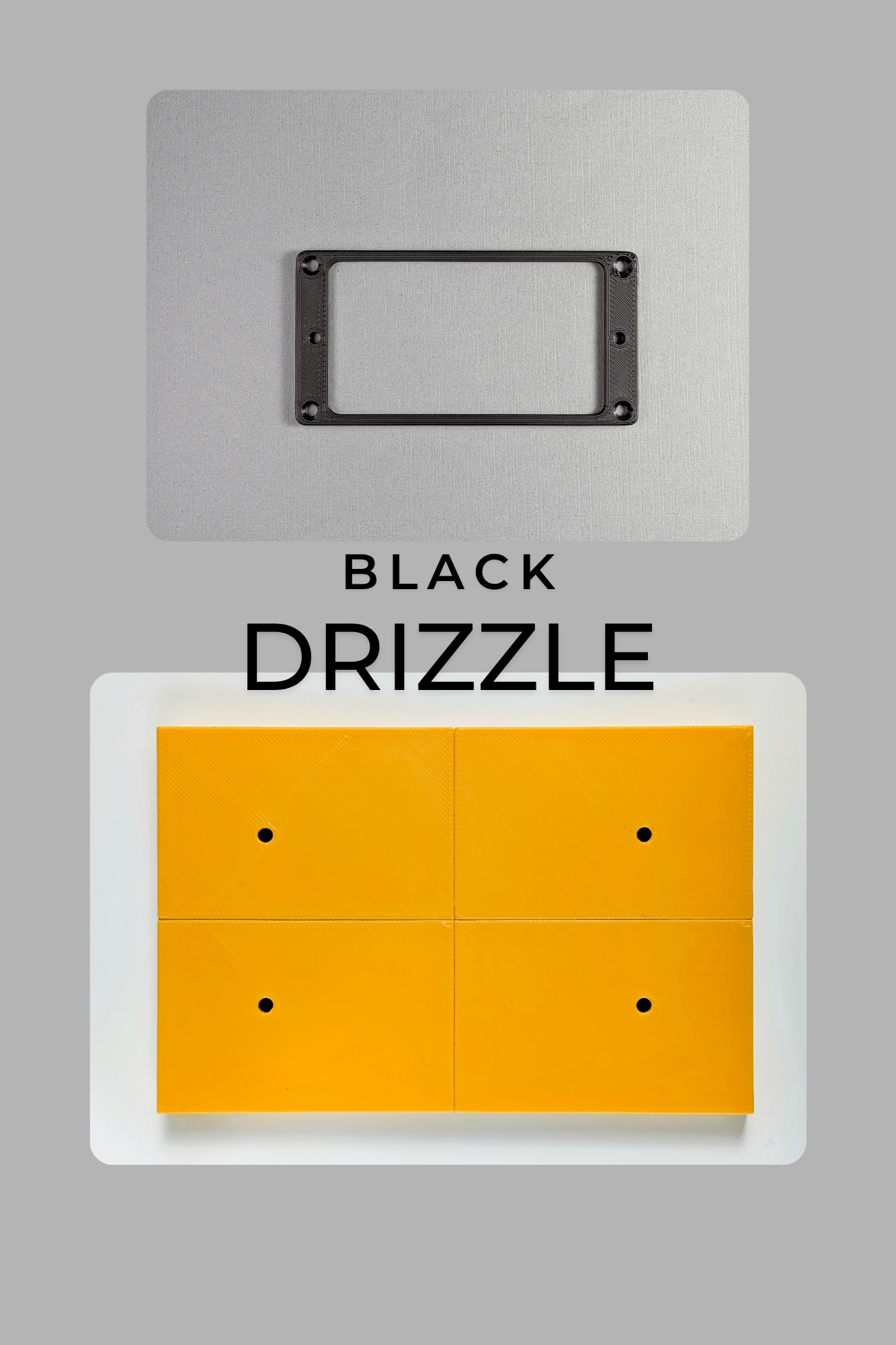

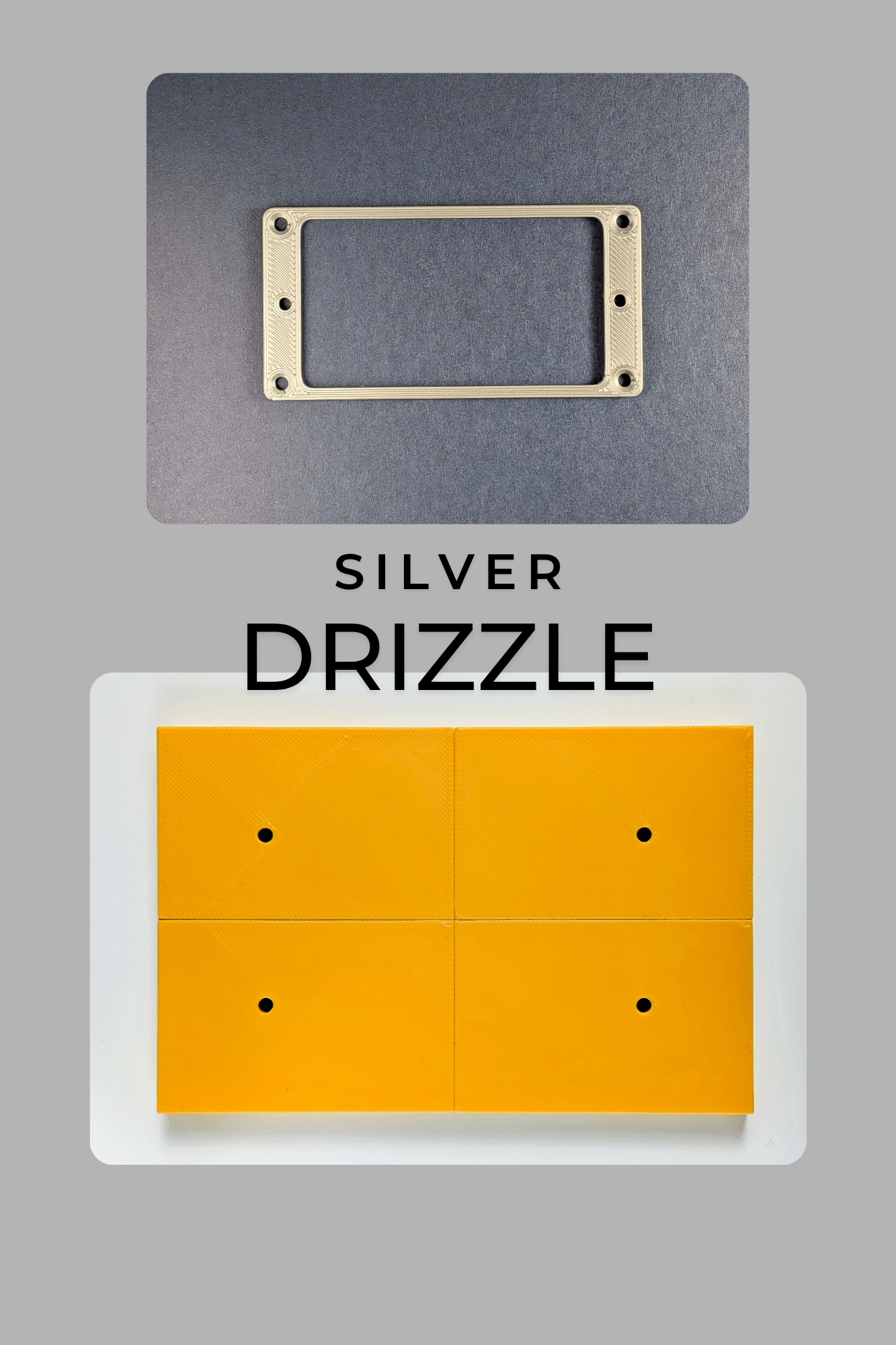

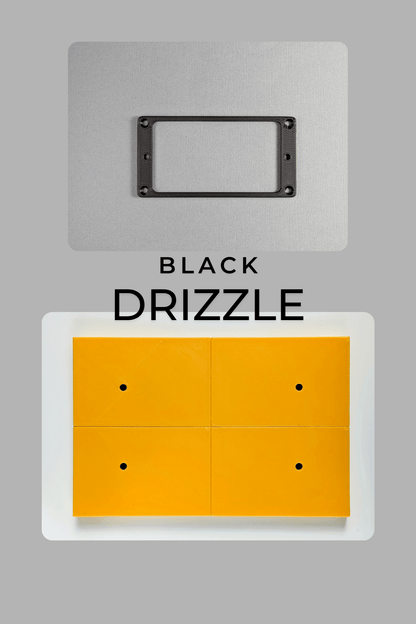

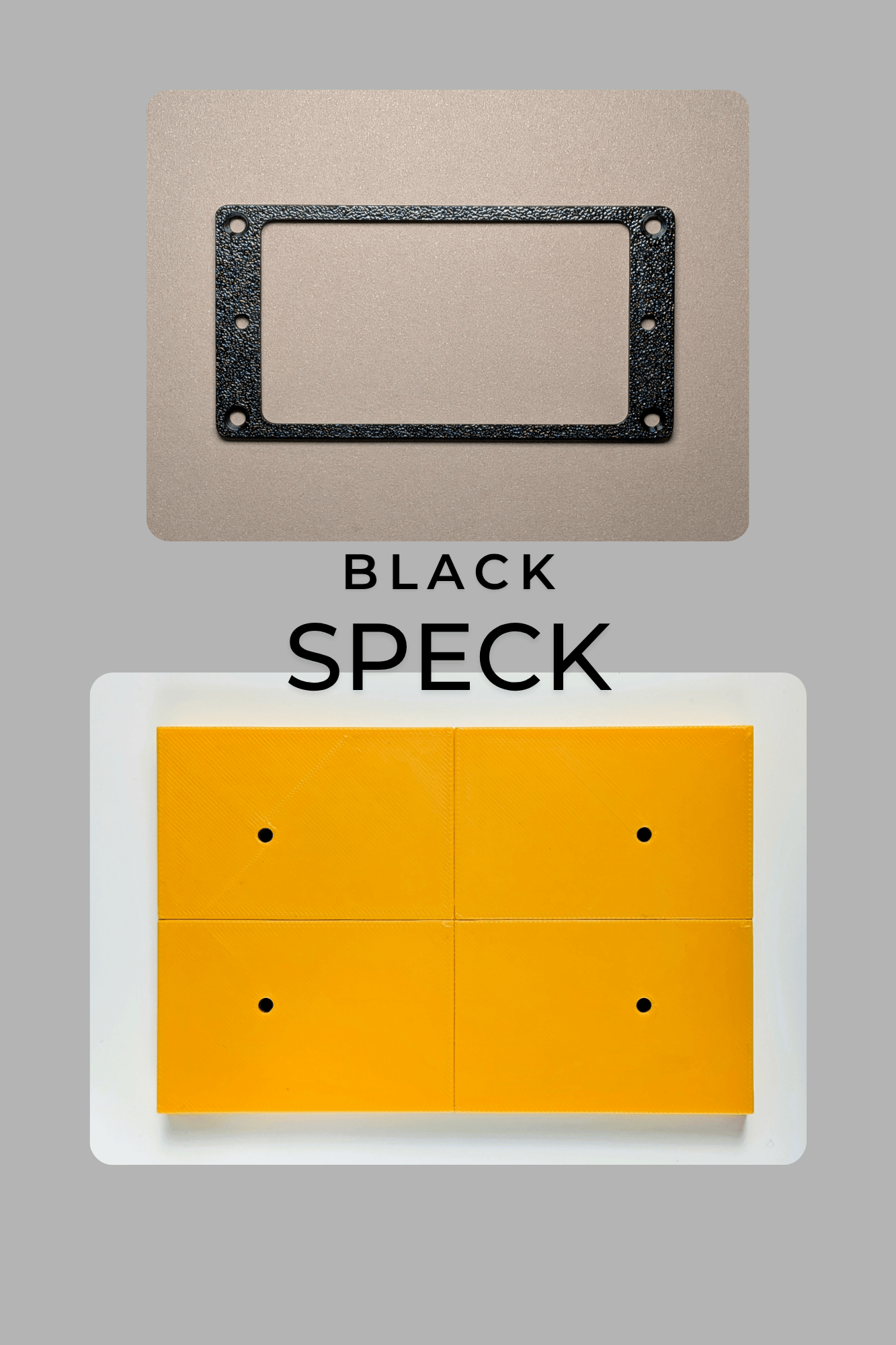

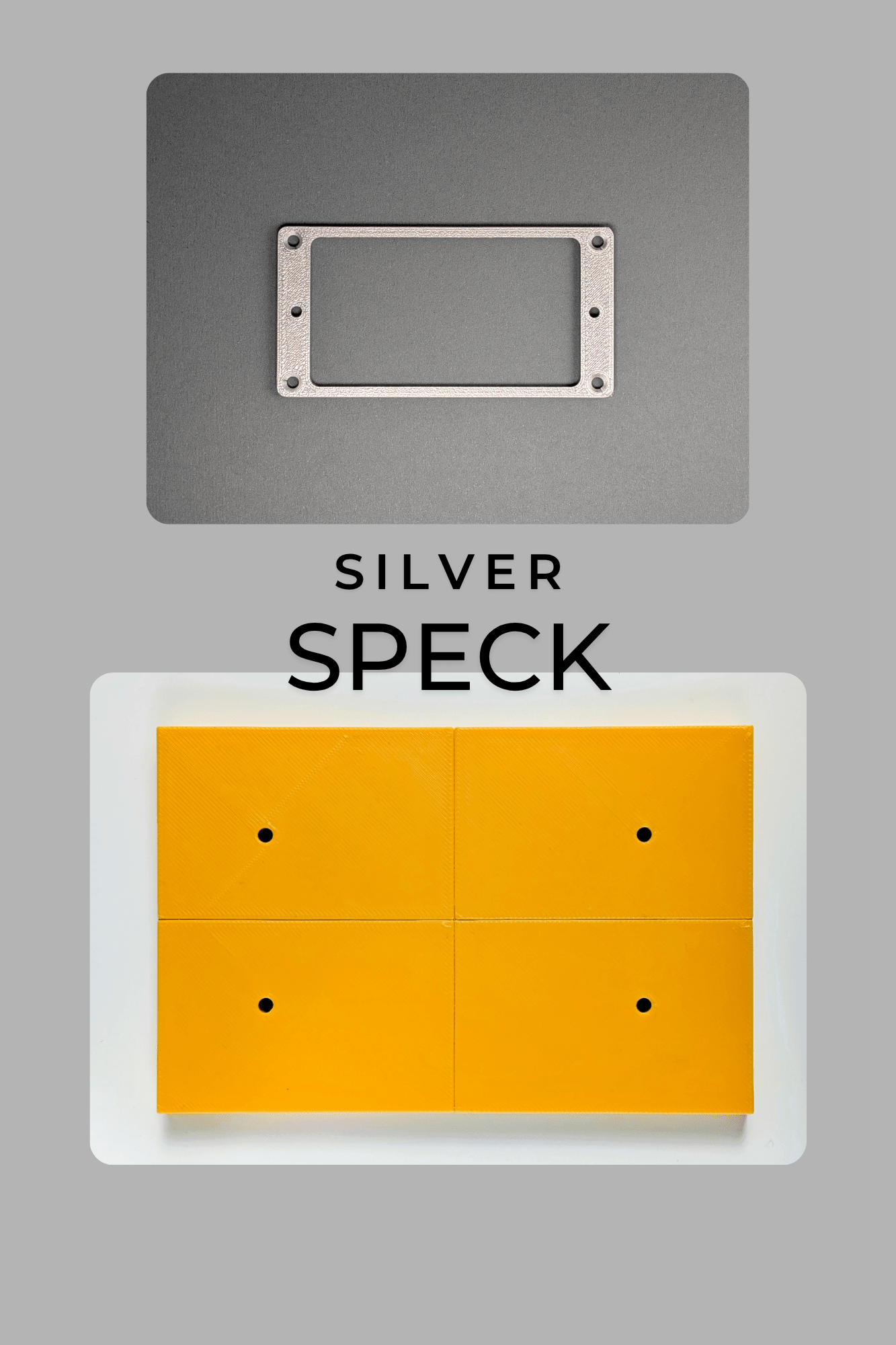

This kit includes:

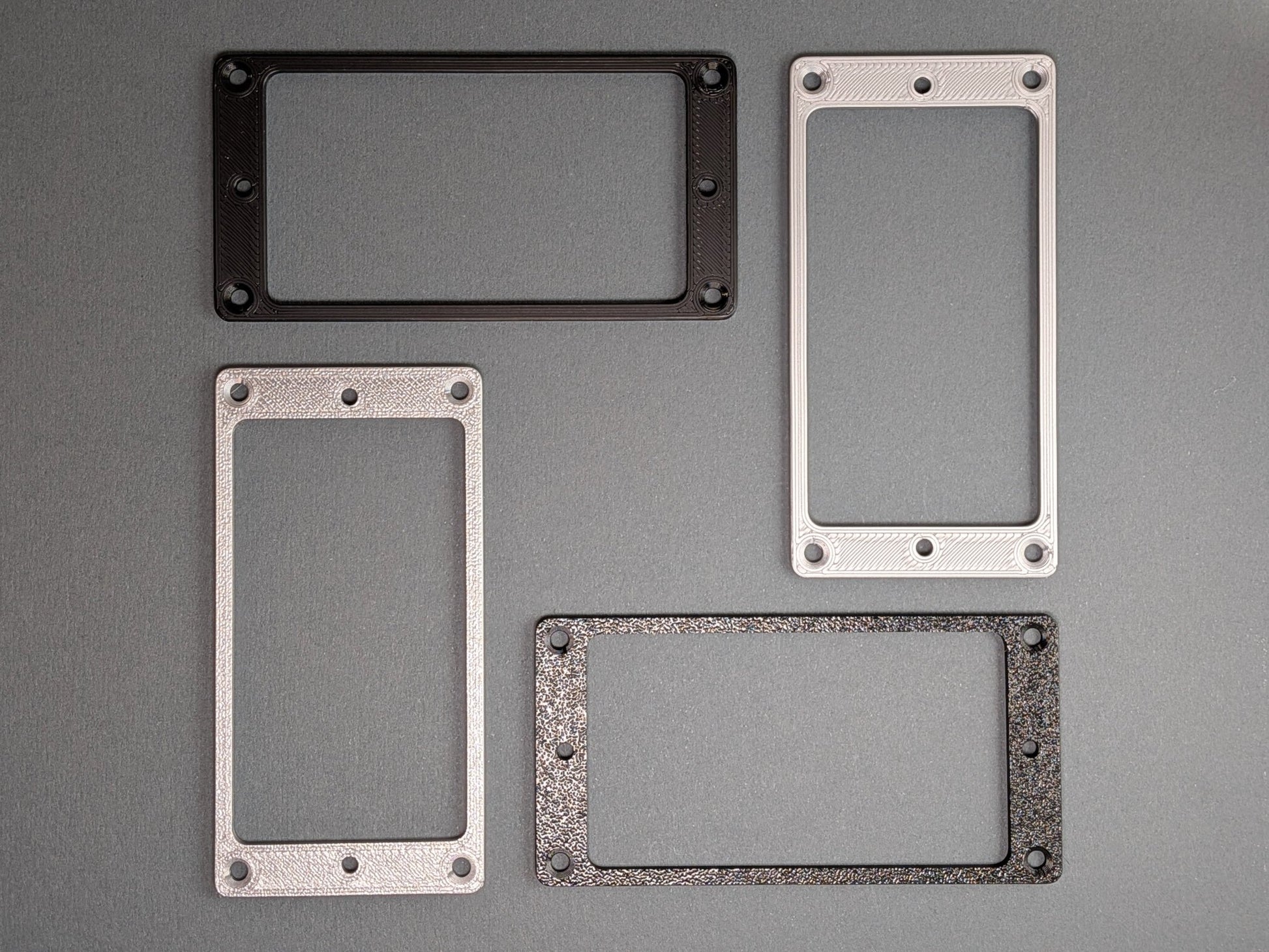

Standard Humbucker Pickup Rings (2-Pack): Premium ABS rings designed with unique custom finishes to replace standard factory hardware. (For detailed footprint dimensions and instrument compatibility, view the individual product page).
Standard Humbucker Marking Jig: Our high-accuracy layout tool featuring dual-axis center lines for flawless alignment on your guitar body. (For detailed technical specifications, view the individual product page).
The Precision Installation System Workflow
This integrated system is designed to take the guesswork out of the workshop. To achieve a factory-perfect installation, we recommend the following workflow:
Secure Placement: Use a small piece of double-sided tape to hold the marking jig firmly in place once aligned.
Accurate Marking: Use an 1/8” center punch or brad point drill bit to mark the exact locations for your mounting screws.
Marking vs. Drilling: This jig is designed to mark locations only. After marking, remove the jig and ensure you use the correct drill bit size for your specific mounting screws.
Practice First: We highly recommend testing your alignment and drilling on a scrap piece of wood first.
Technical Specifications & Characteristics
Durable ABS Construction: Built to withstand the rigors of the stage and the workbench, perfect for both new builds and upgrades.
Manufacturing Characteristics: Due to our specialized fabrication process, every part features a unique finish. These subtle variations are normal and do not affect the precision fit or mechanical performance.
Available Finishes: Choose from our signature smooth or textured surfaces.
Color Note: Industrial finishes are light-reactive; studio photos may appear lighter than in ambient light.
Mounting Hardware: Mounting screws are not included. This allows you to reuse your original factory hardware or select a specific screw finish to match your build.
Industry-Standard Compatibility
Universal Fit: Our rings are engineered to widely recognized industry-standard dimensions for flat pickup rings. They share the same footprint and mounting specs as standard flat rings (such as those offered by StewMac), ensuring a seamless fit for your project.
Instrument Compatibility: A perfect upgrade or replacement for many high-performance instruments, including several Ibanez® series guitars and custom builds utilizing a flat-ring footprint.
Explore the Full System
Looking for more precision? We offer a variety of Jigs designed to simplify your build process. Explore the full collection for additional professional-grade guitar components.
🇺🇸Made in USA
Ships from California, USA
Availability:
Released in production cycles; next release opens following fulfillment.
